Key Features |
- Final Fineness ≤ 50 μm .
- Fast and effective Analytical pure grinding.
- Homo genizing is achieved continuous mixing during grinding process.
- Reproducible Grinding/Homogenizing.
|
Application Area |
- Soft, Medium and Hard Material
- Pulverizing, Mixing, Homogenizing, Colloidal milling
- Mining and Metallurgy
- Chemical Industries
- Geology and minerology
- Ceramic Industry
- Rock and soils
|
|

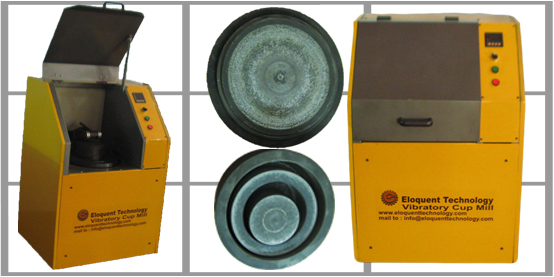

Vibratory Cup Mill(VCM)
Eloquent VCM are designed for powdering material less than 50 μm. |
Technical Specification -VCM-100 |
Power |
1.5 kw/2 HP,1440 rpm |
Electrical Details |
430 V /3 phase~,50Hz,or 220 V /1 phase, 50Hz |
Weight |
|
Dimensions |
|
|
Technical Specification -VCM-100 |
|
|
8-10 mm |
|
≤5 µm |
|
400ml,250ml,150 ml |
|
Bowl 1No. 1 Ring & 1 Hammer |
|
Hardened steel with tough Core |
|
Technical Specification -VCM-100 Working construction |
Principle |
Impact, Friction |
Feeding |
Batch wise/continuous |
Material |
Hard,Medium-Hard,brittle |
Grinding parts |
Ring and hammer |
|
` |
|
